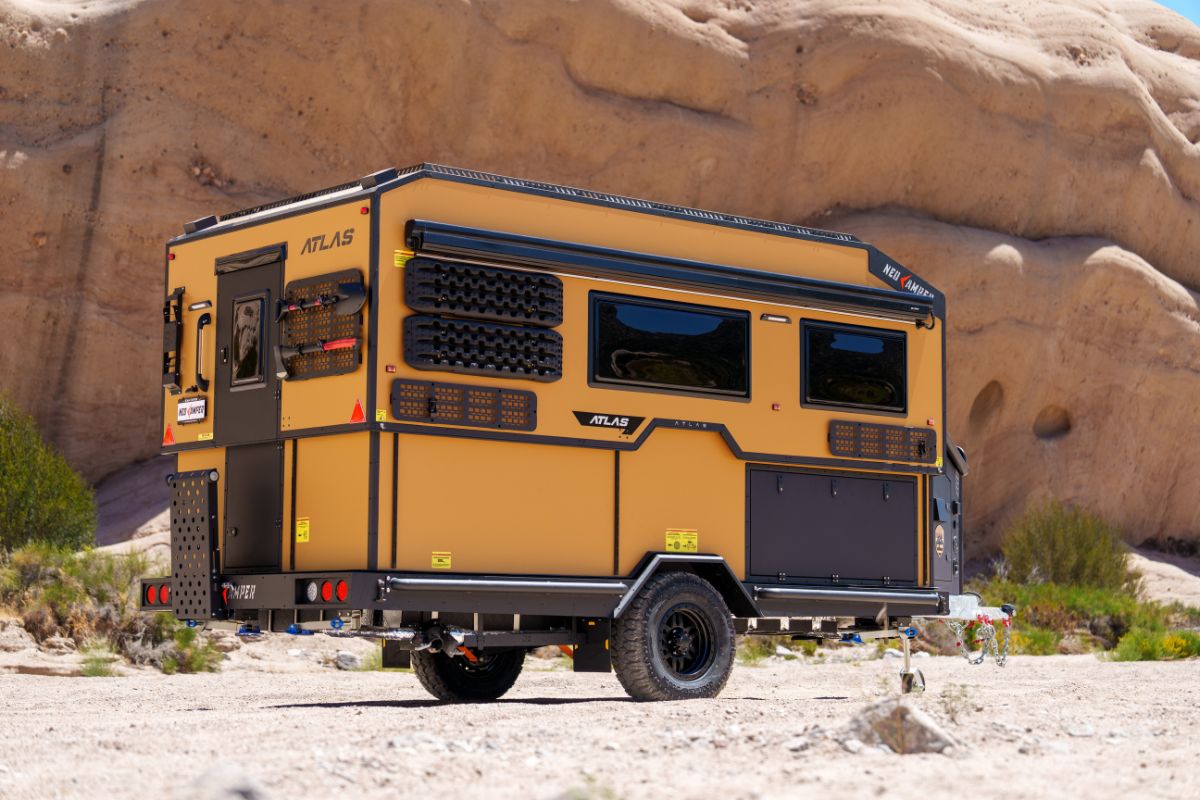

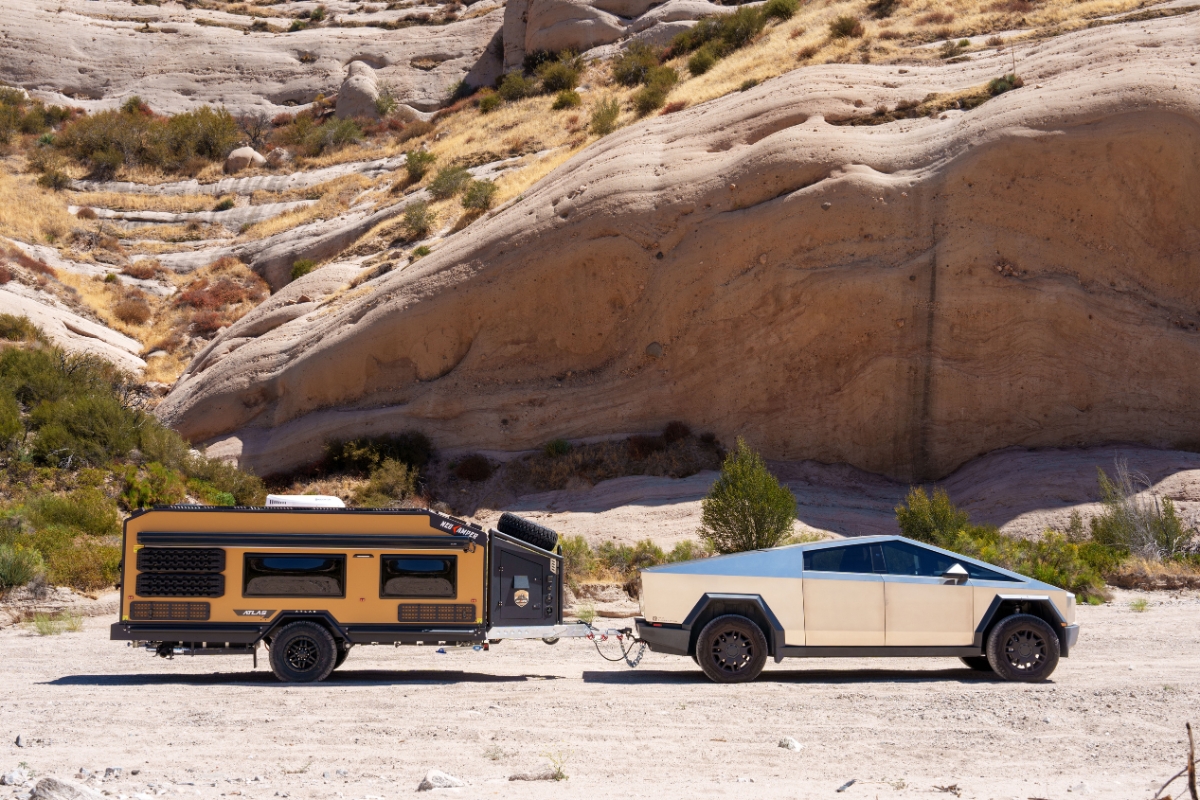

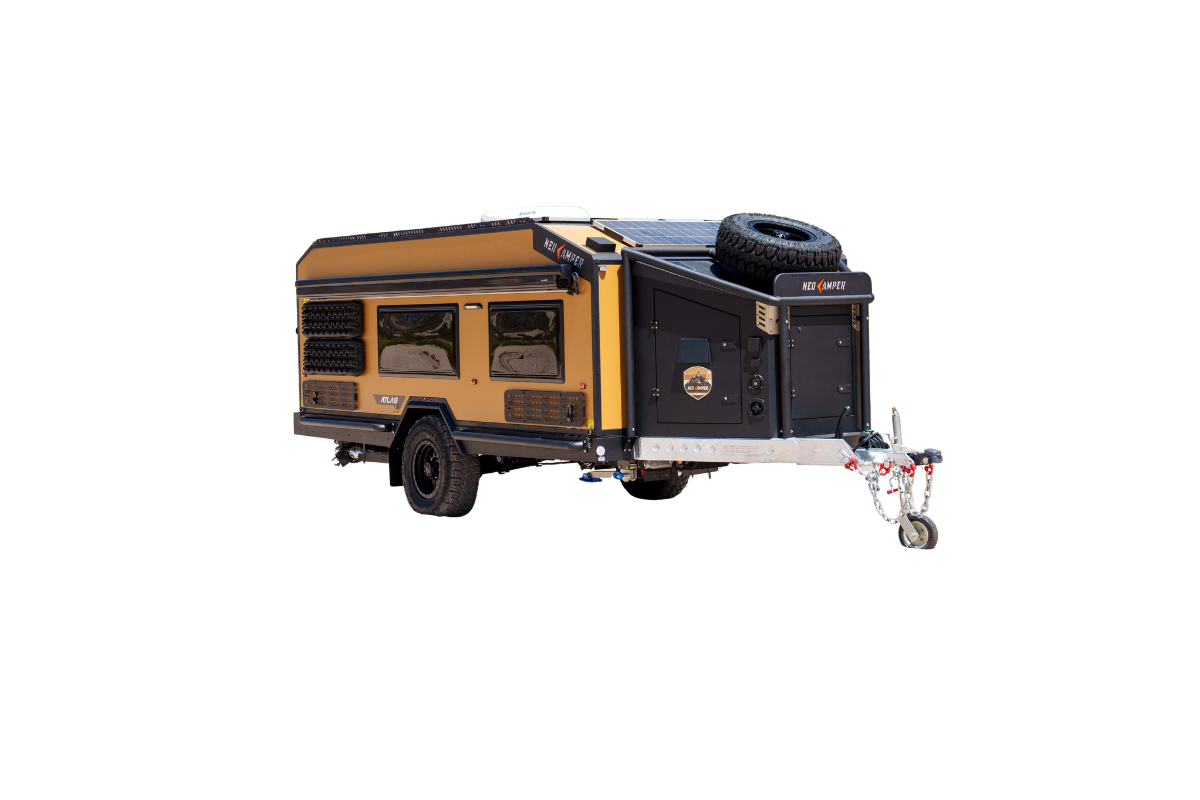

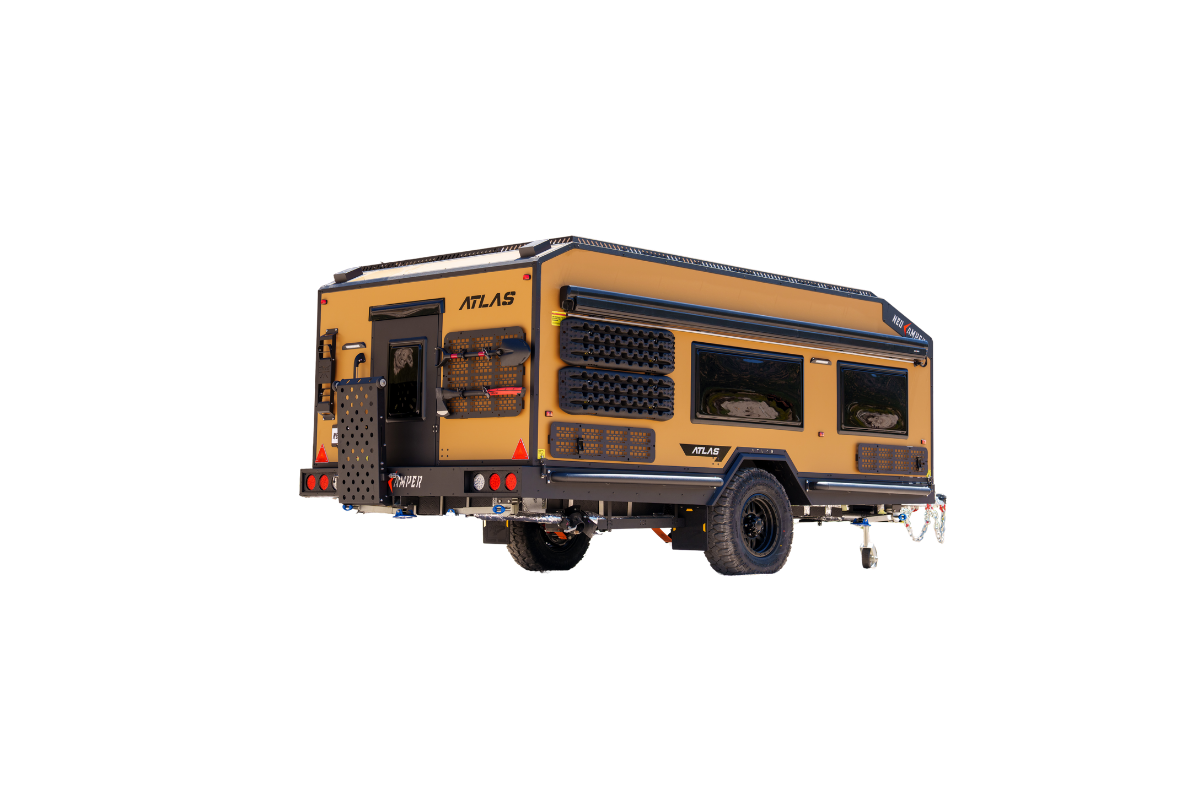

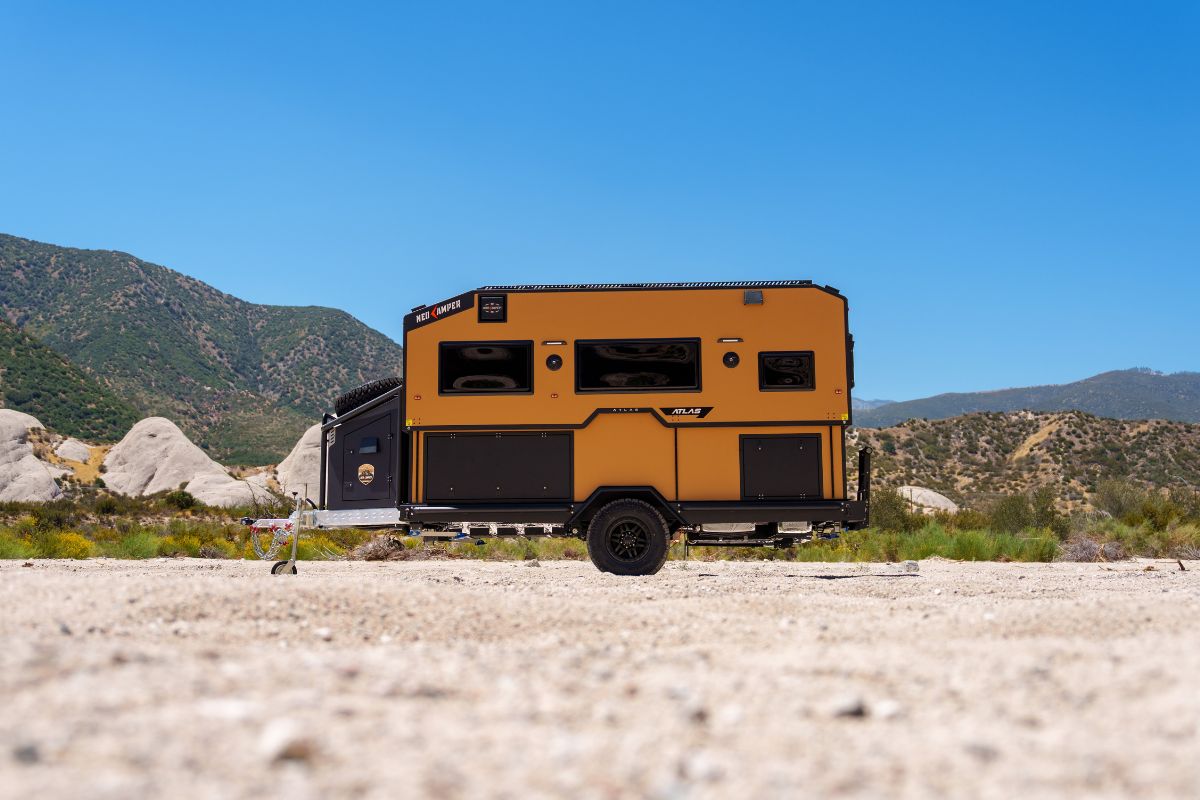

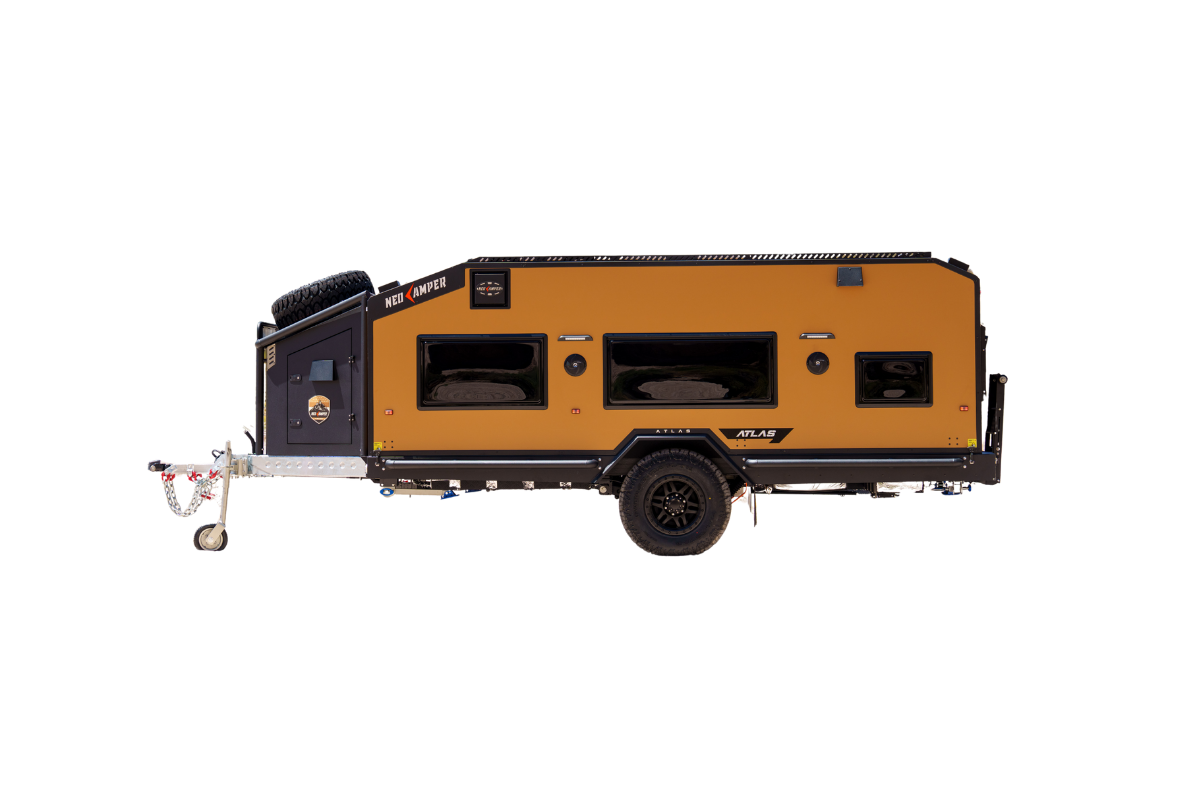

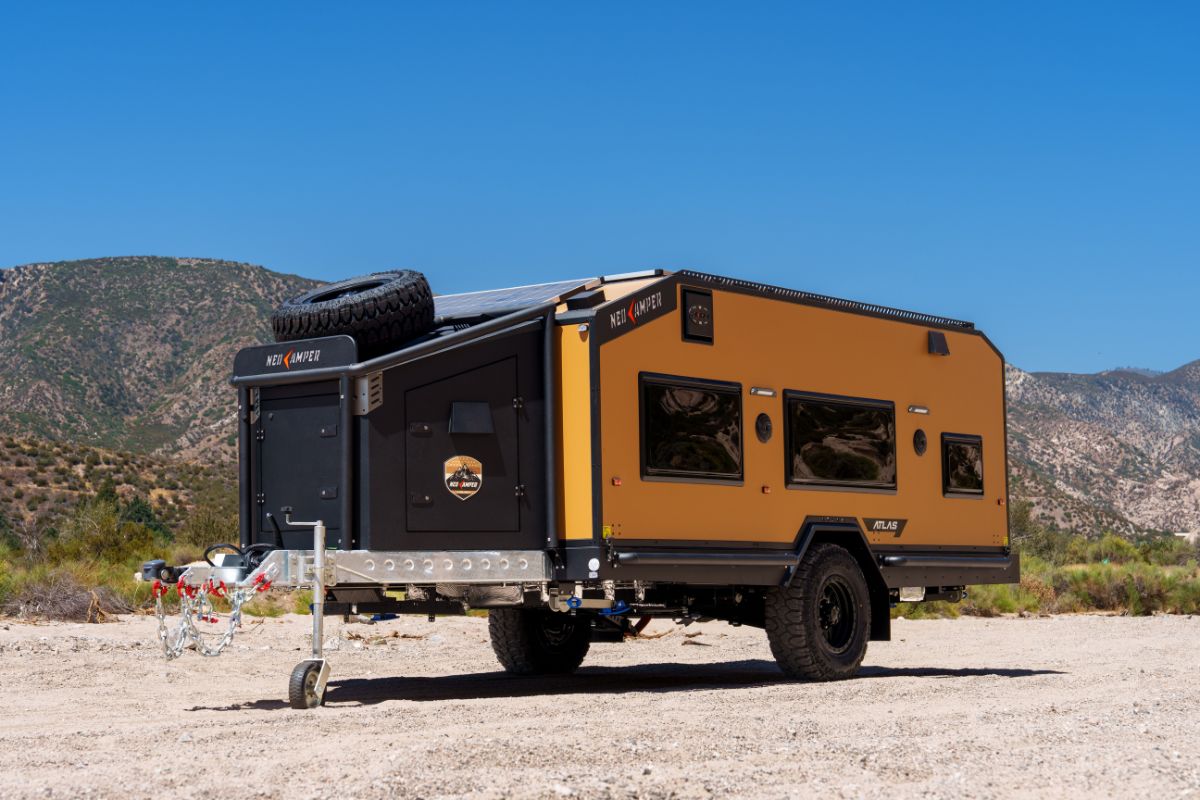

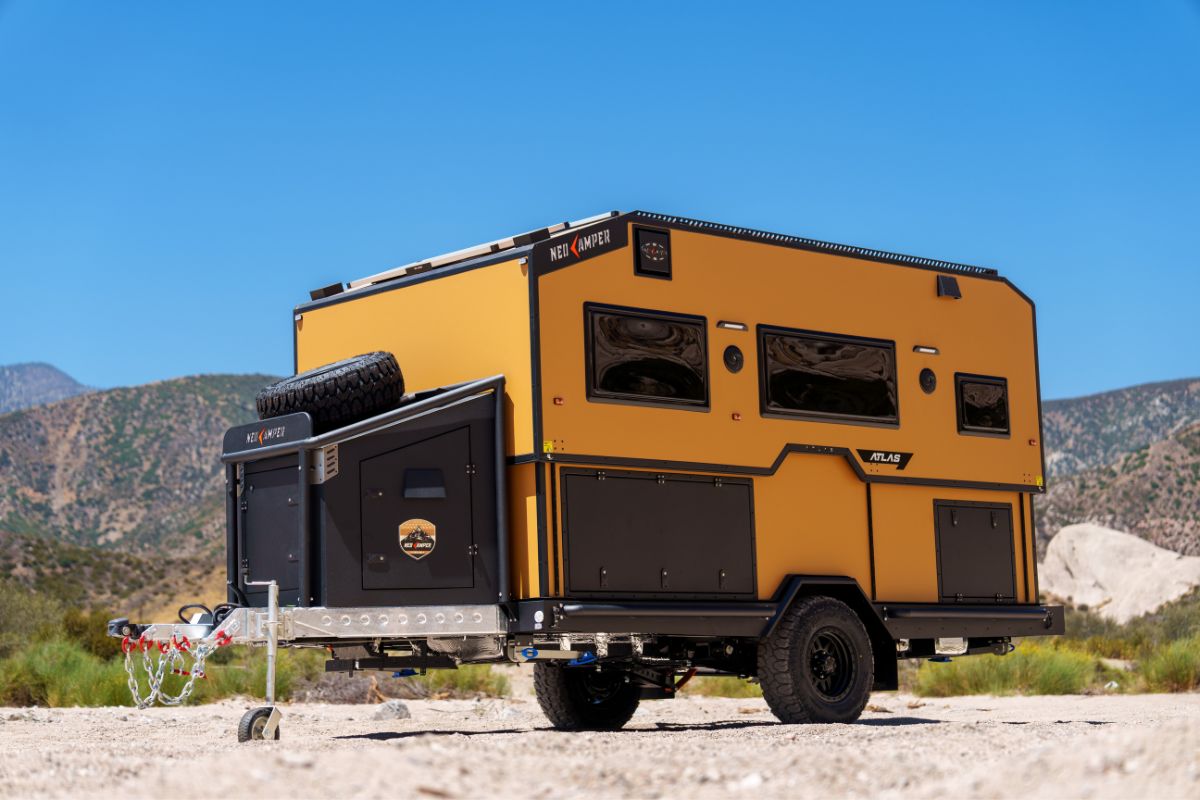

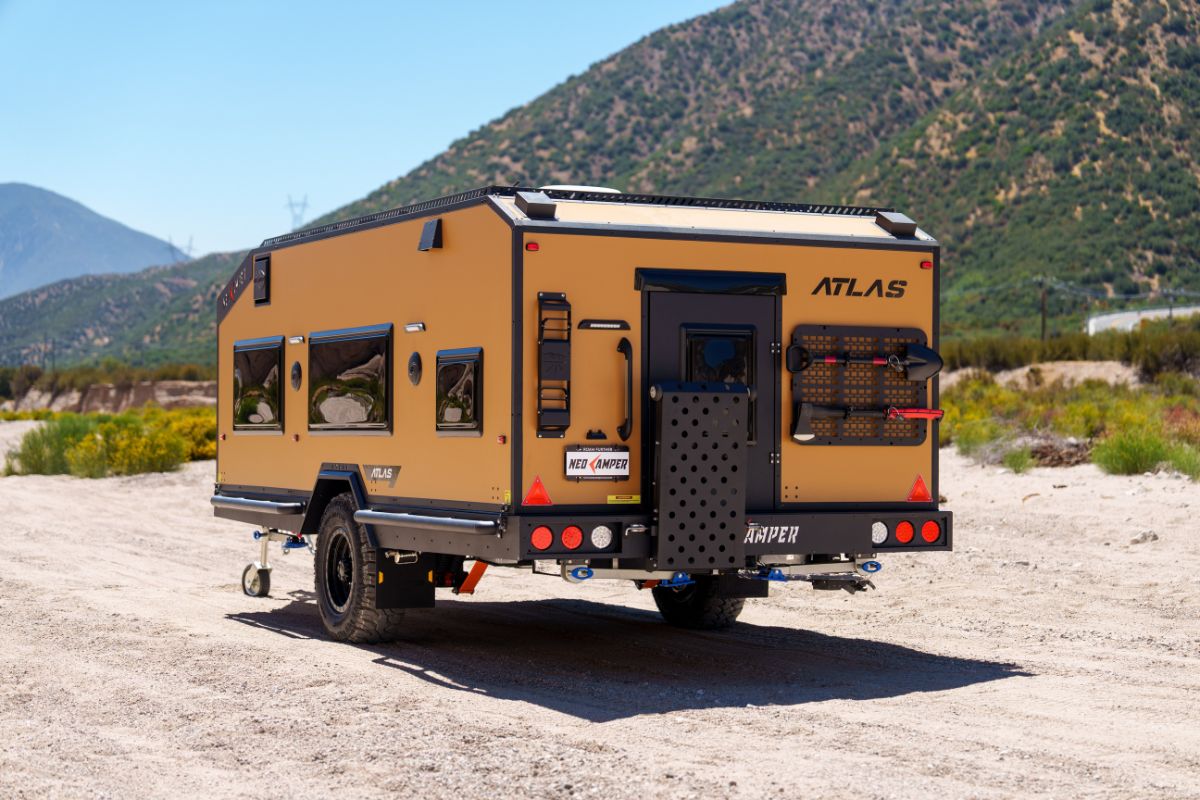

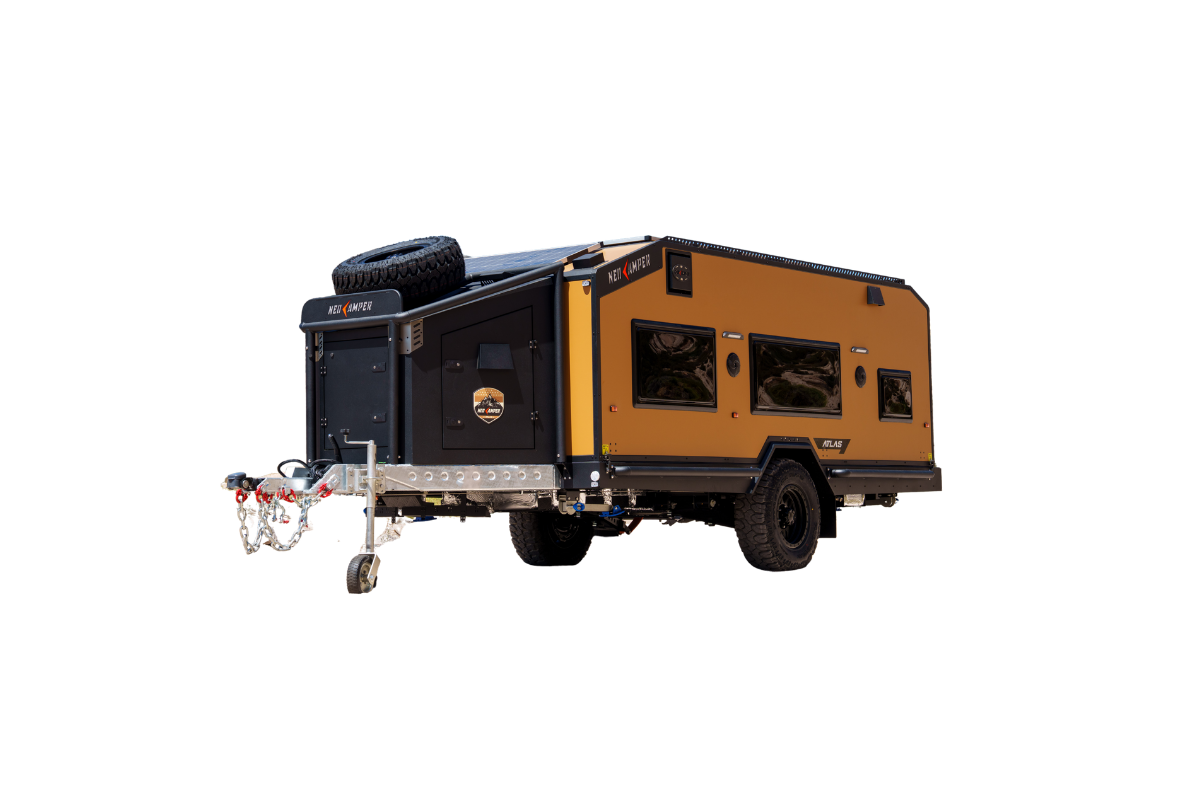

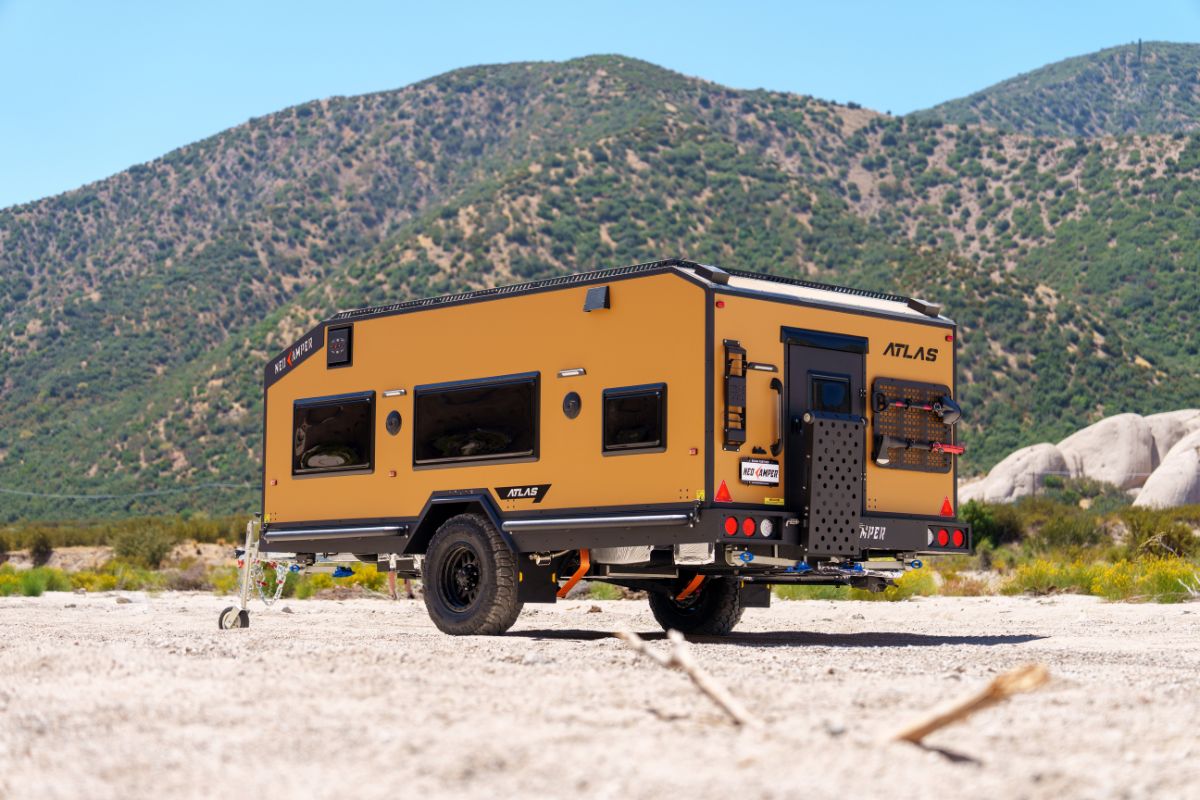

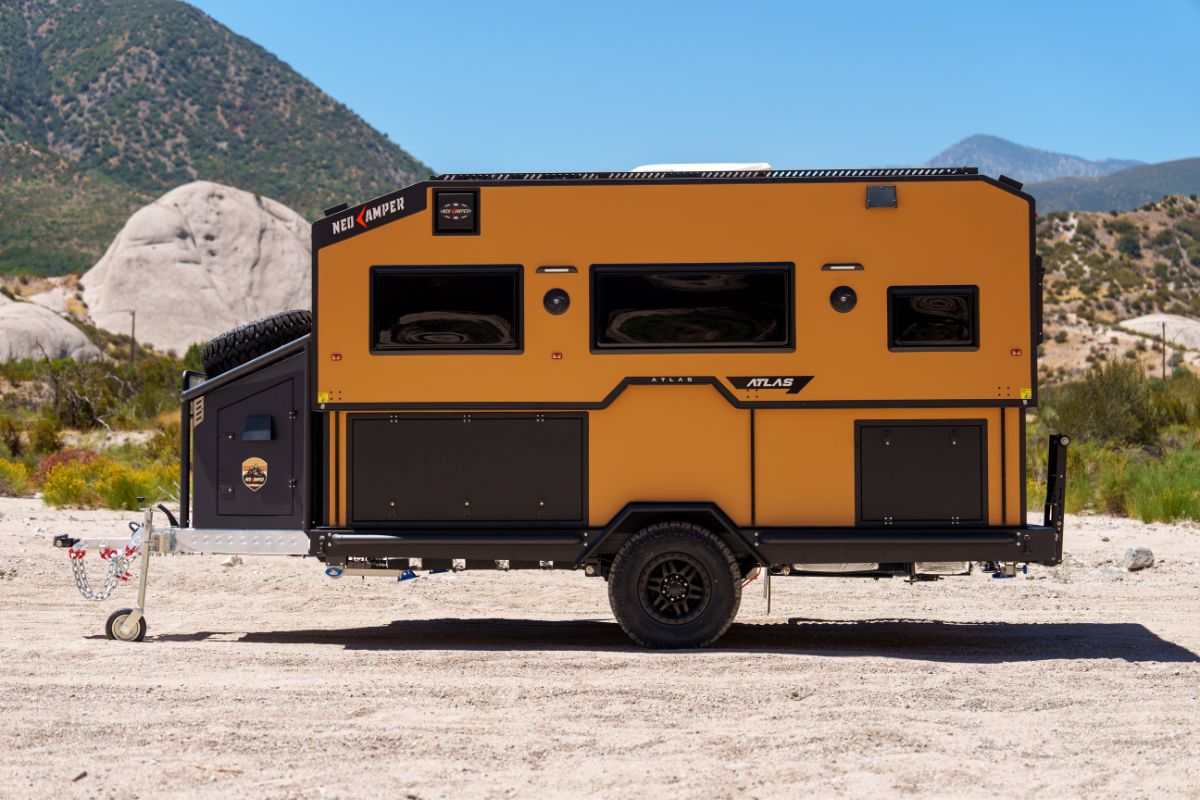

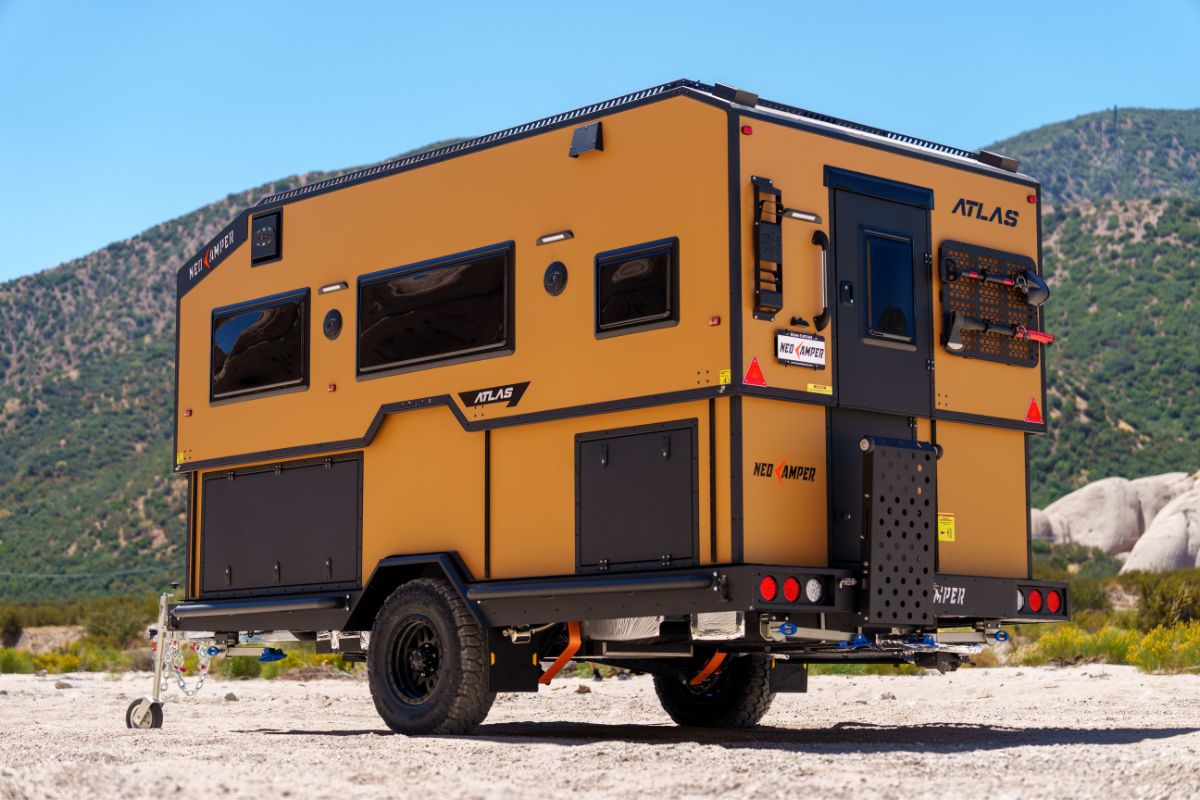

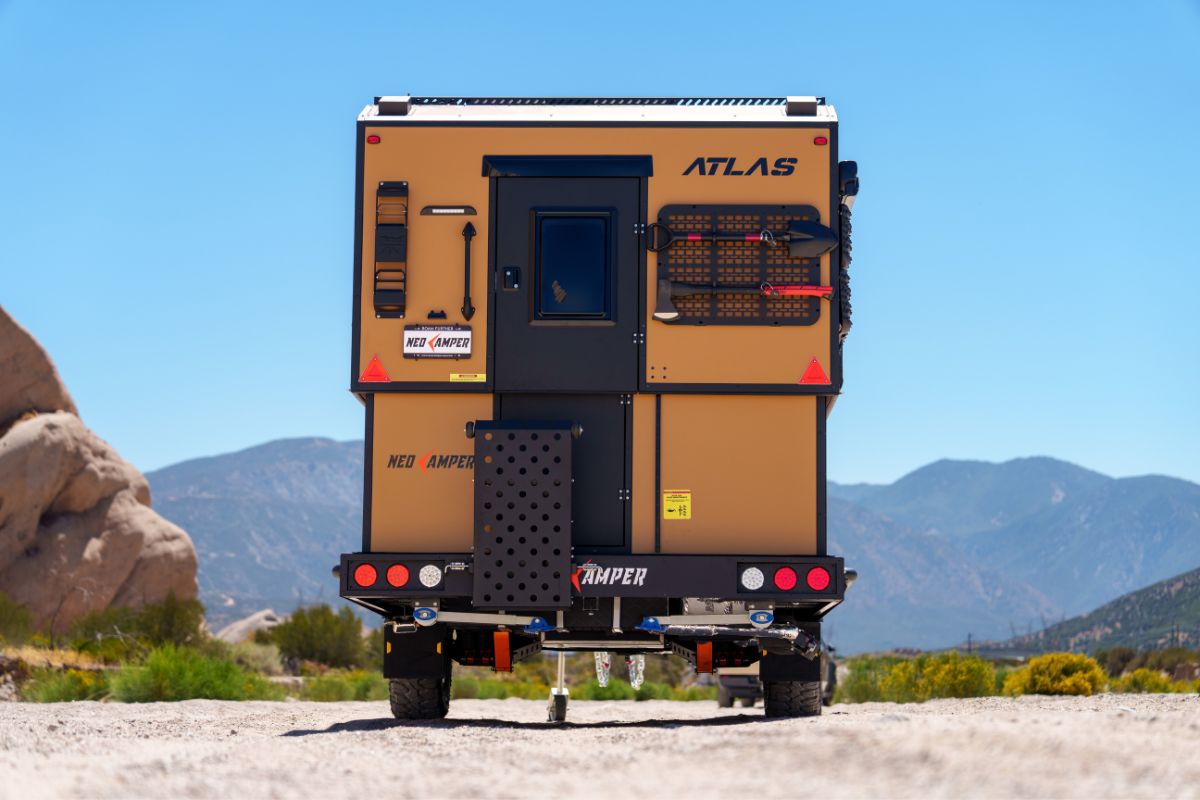

The ATLAS is built around one of its most distinctive features: a hydraulic hard-side pop-up design that creates a lower, more compact profile for towing and off-road travel, then expands at camp into a spacious, fully enclosed living space at the push of a button. Unlike traditional canvas pop-up campers, the ATLAS uses solid walls for greater protection from the elements, security, and improved insulation. When lowered, its reduced profile also improves clearance and maneuverability when traveling off the beaten path. A heavy-duty steel chassis and independent adjustable air suspension provide the foundation for serious offroad travel. At camp, the ATLAS transforms into a fully equipped off-grid basecamp with 900W of solar, 70-gallon fresh water capacity, heating and A/C, a macerating toilet, washer and dryer, indoor/outdoor kitchen, dual refrigerators, and more.
| DRY WEIGHT: | 4453 Lbs |
| GVWR: | 6570 Lbs |
| AXLE CAPACITY: | 6085 Lbs |
| BODY LENGTH: | 19.6 ft |
| TOTAL LENGTH: | 22.45 ft |
| BODY WIDTH: | 6.90 ft |
| LOW HEIGHT: | 8 ft |
| MAX HEIGHT: | 9.81 ft |
| GROUND CLEARANCE: | 1.15 ft |
Chassis: Heavy-Duty Steel Chassis
Main Frame: PET Foam Core Sandwich Panel With Aluminum Frame

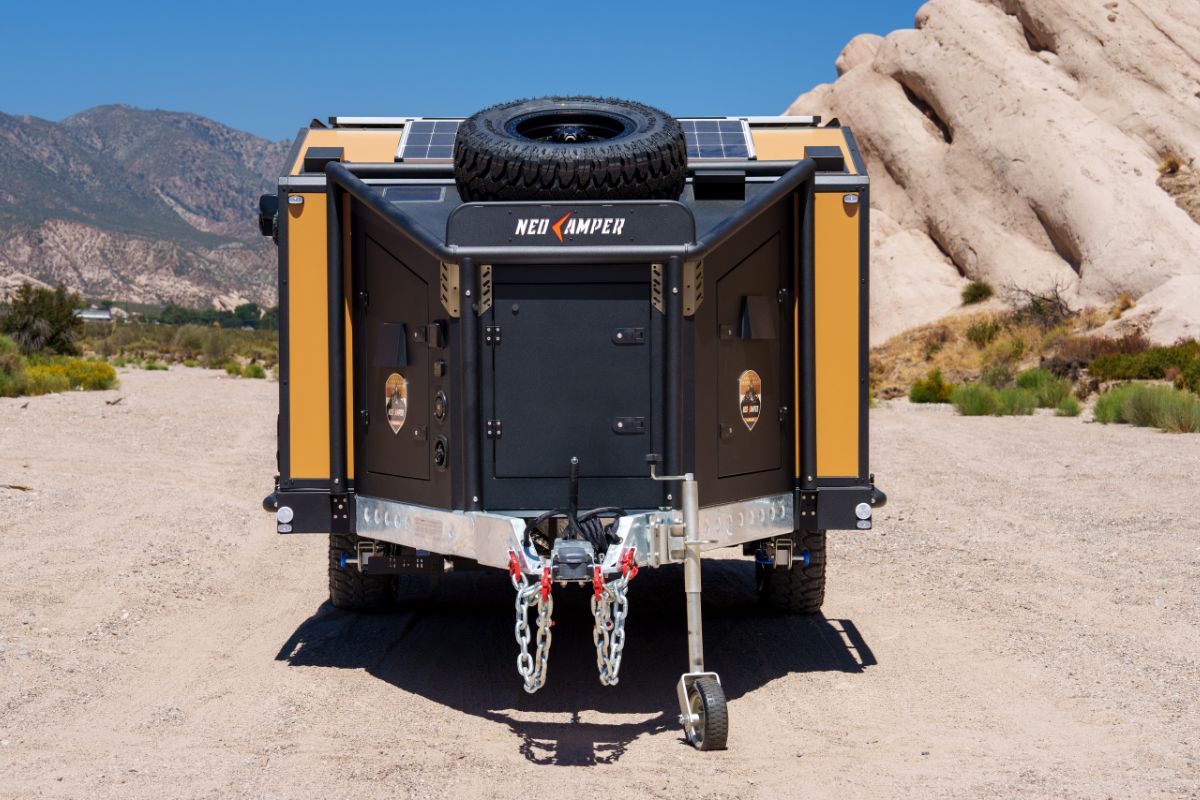

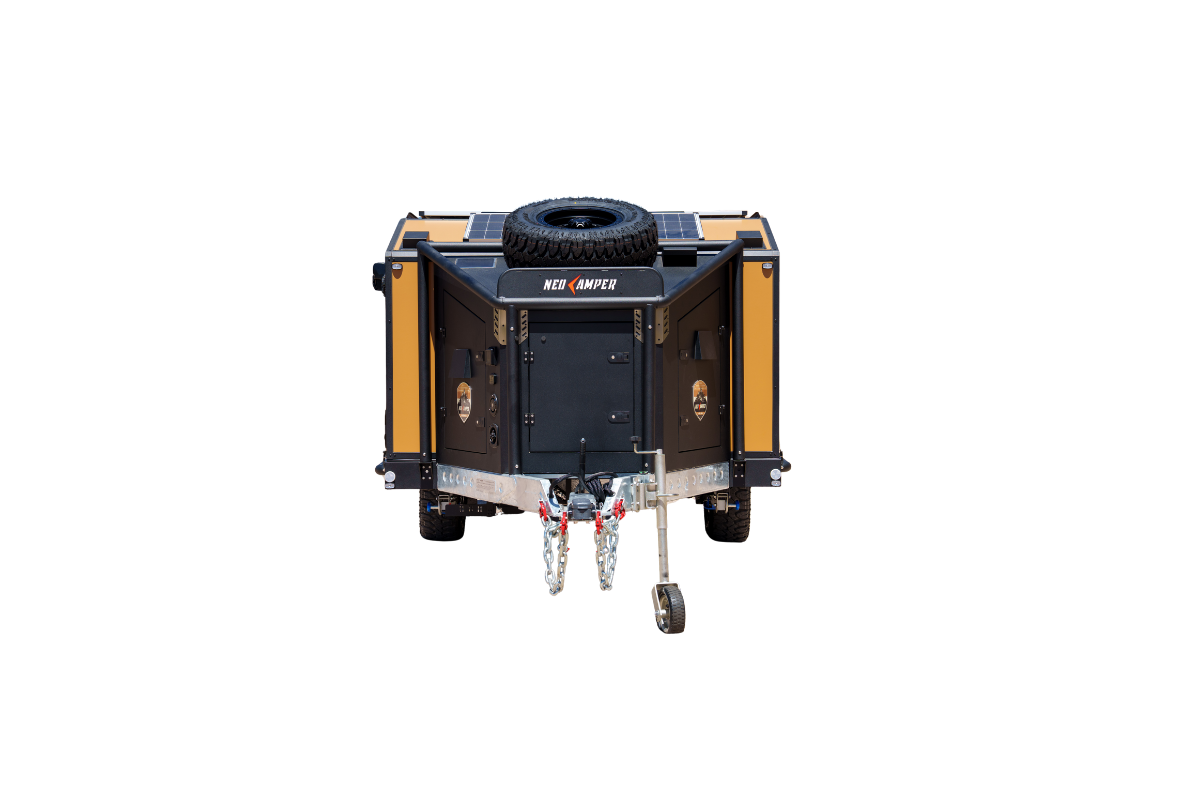

Hitch: Australian Drop-On Articulating Pin Coupler
Emergency Brake: 1 Set Breakaway Braking System
Safety Chain: 2 Safety Chains
Jack: Heavy-Duty Jockey Wheel
Suspension: Australian-Style Independent Suspension
Shock Absorber: Air Suspension
Damping: Performance Damping
Brake: 2x 12-inch Electric Brake System
Tire: 265/75R16 Tire
Spare Tire: Full-size Alloy Spare Wheel
Rim: 16-inch Alloy Wheel
Front Car Charging Interface: Anderson Tow Vehicle Charging Port
External Power Socket: American-Style External Power Inlet
Trailer Size (Pre-Extension): 22.45 ft x 6.9 ft x 8 ft
Trailer Size (Post-Extension): 22.45 ft x 6.9 ft x 9.81 ft
Awning: Electric Awning
Exterior Lighting: Exterior Lights Included
Outdoor Kitchen: Outdoor Combo Kitchen With Single-Burner Induction Cooktop

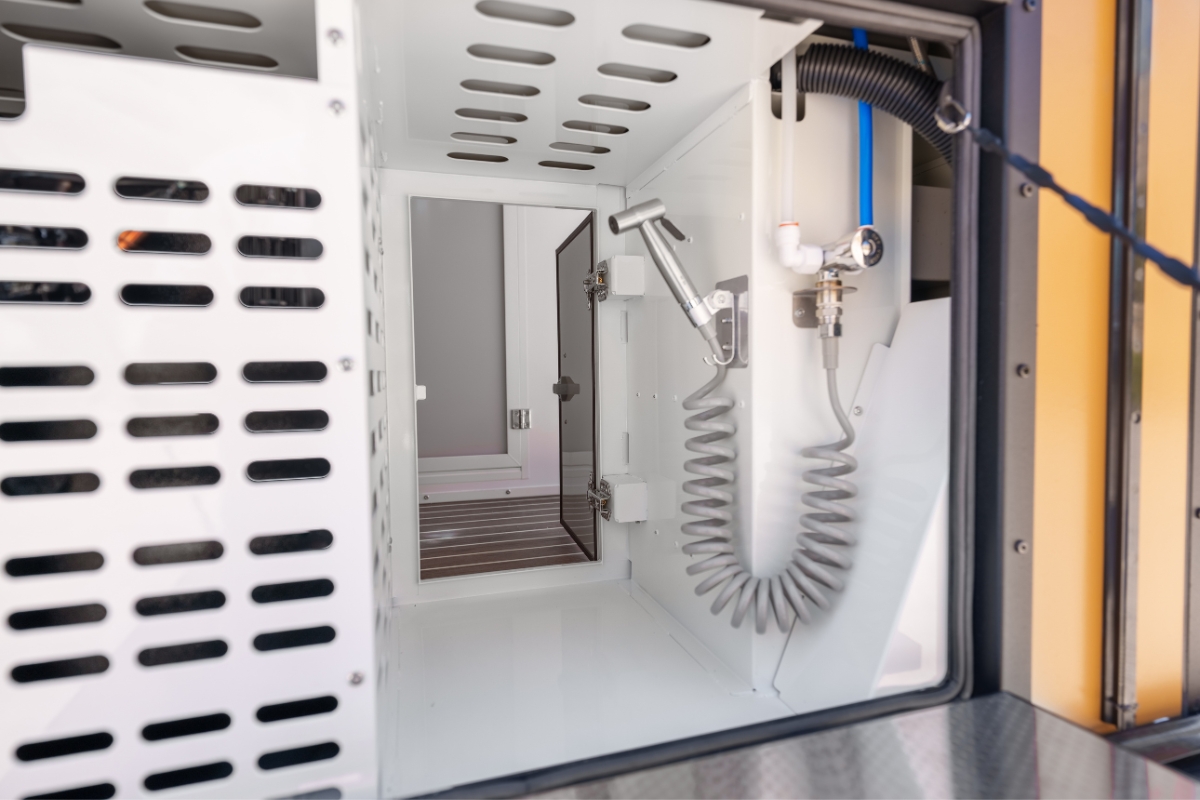

External Shower: Outdoor Shower Head Included
Dust Reduction System (DRS): Side-Mounted DRS
Recovery Gear: 2x Traction Boards, Shovel, Axe

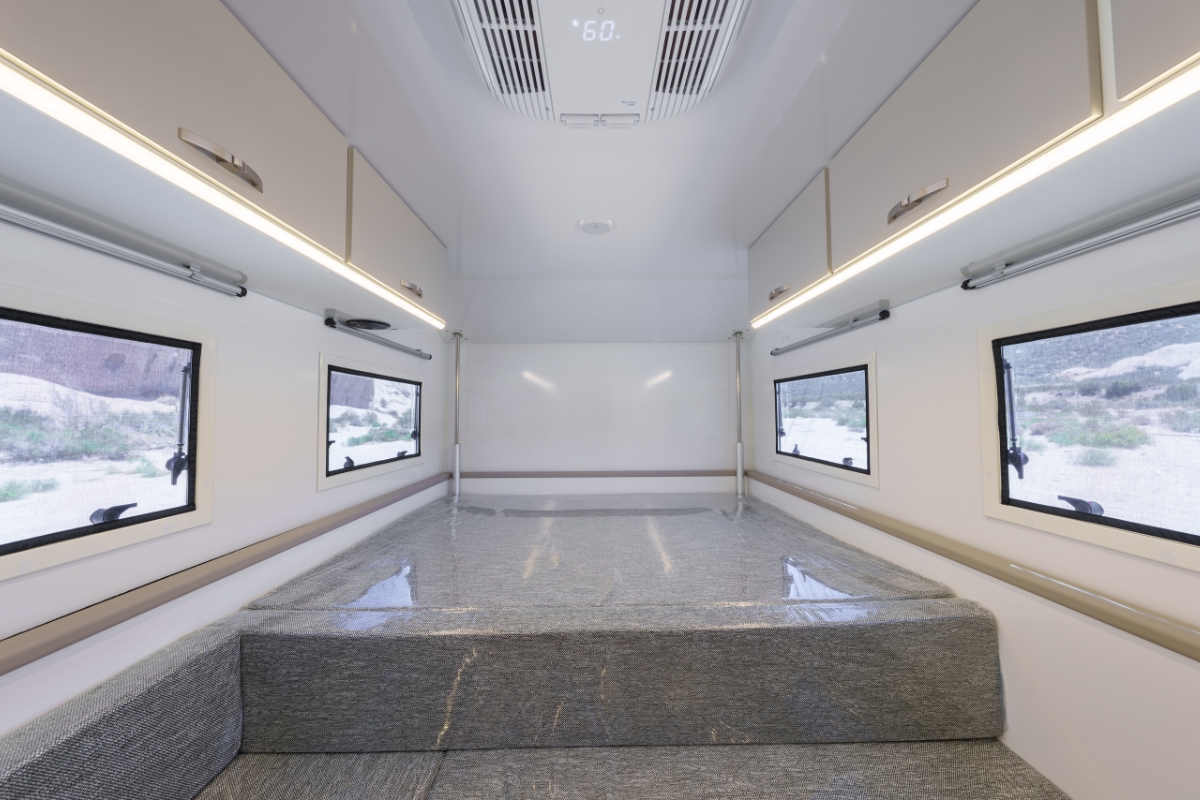

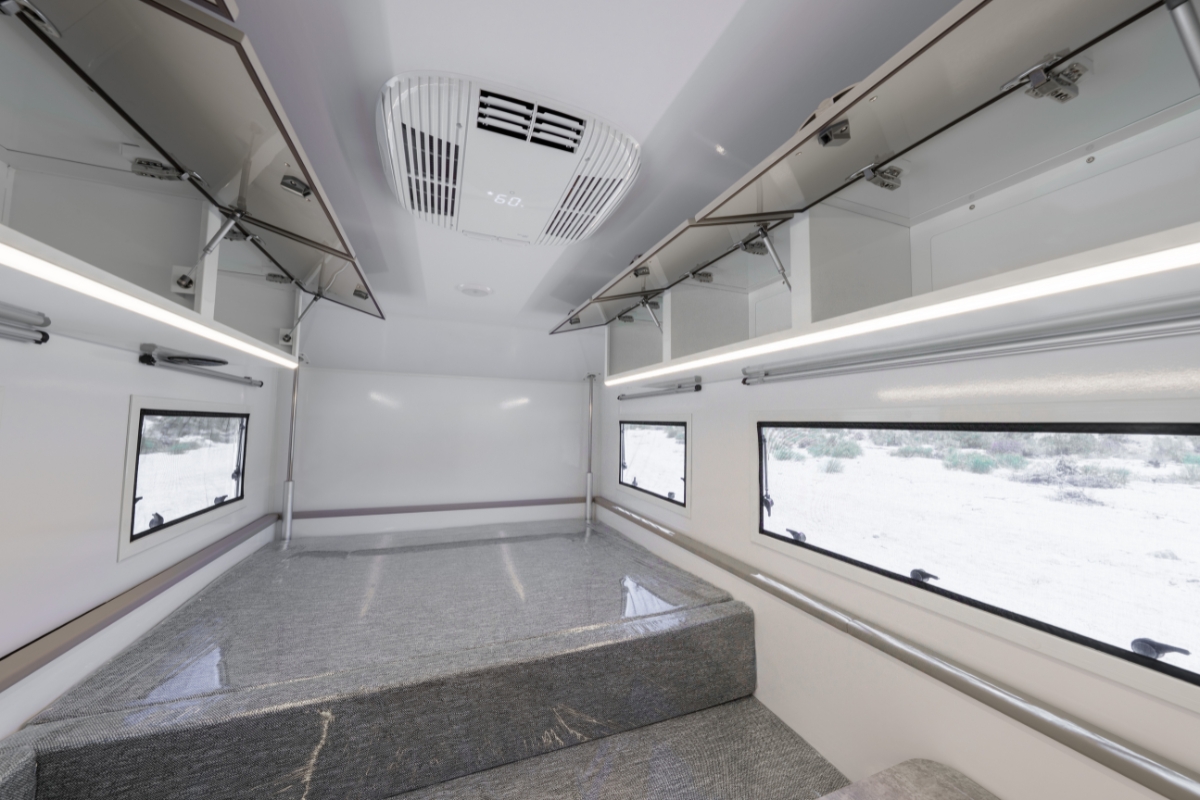

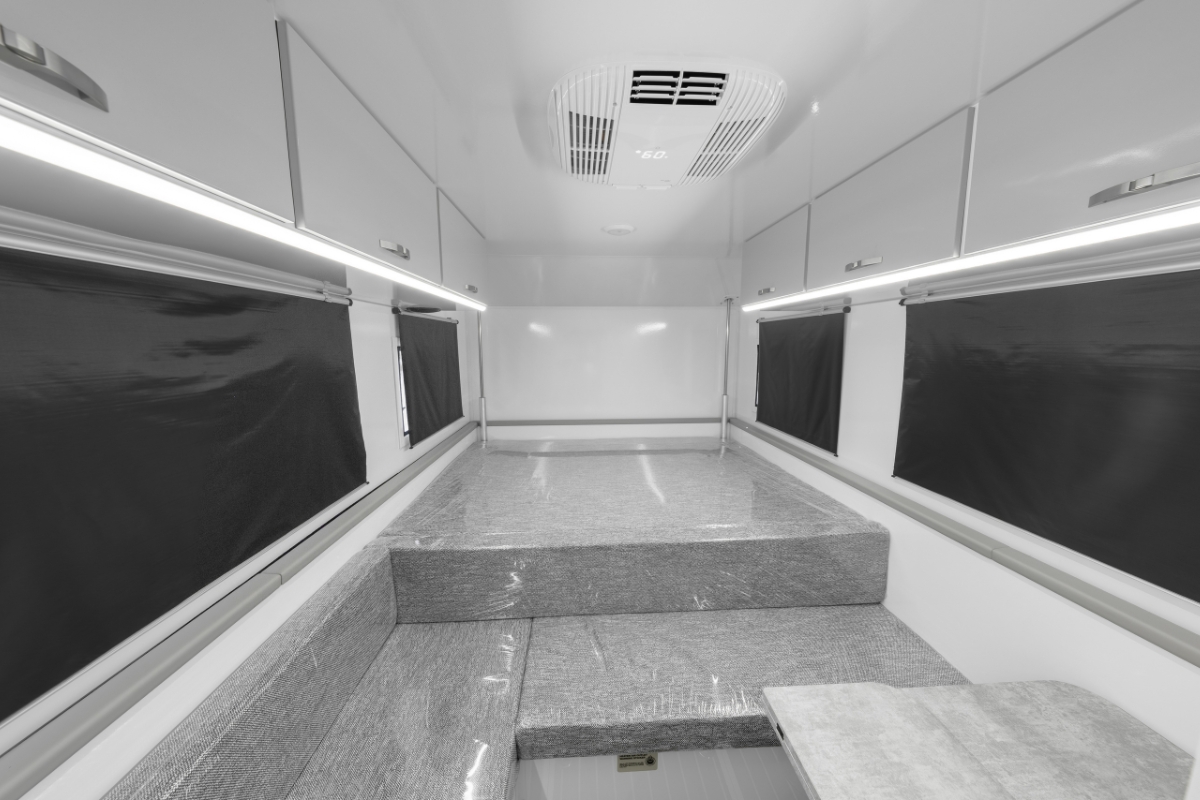

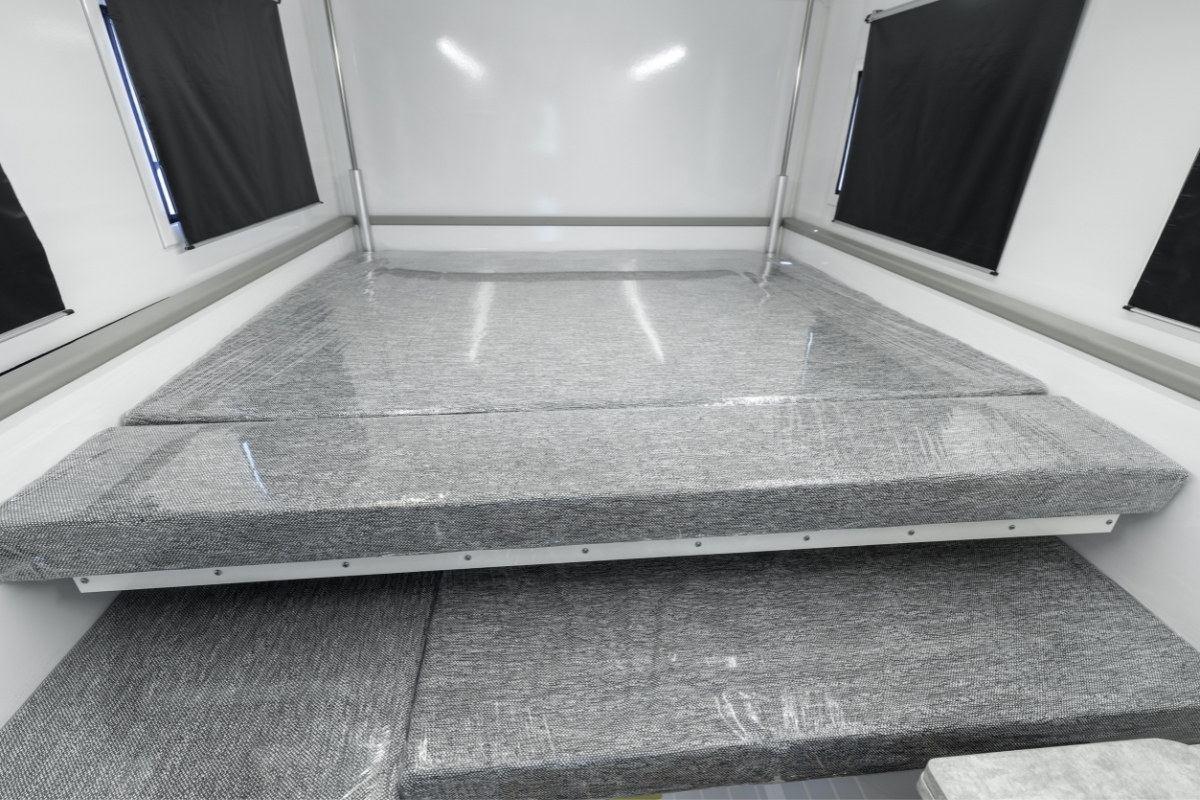

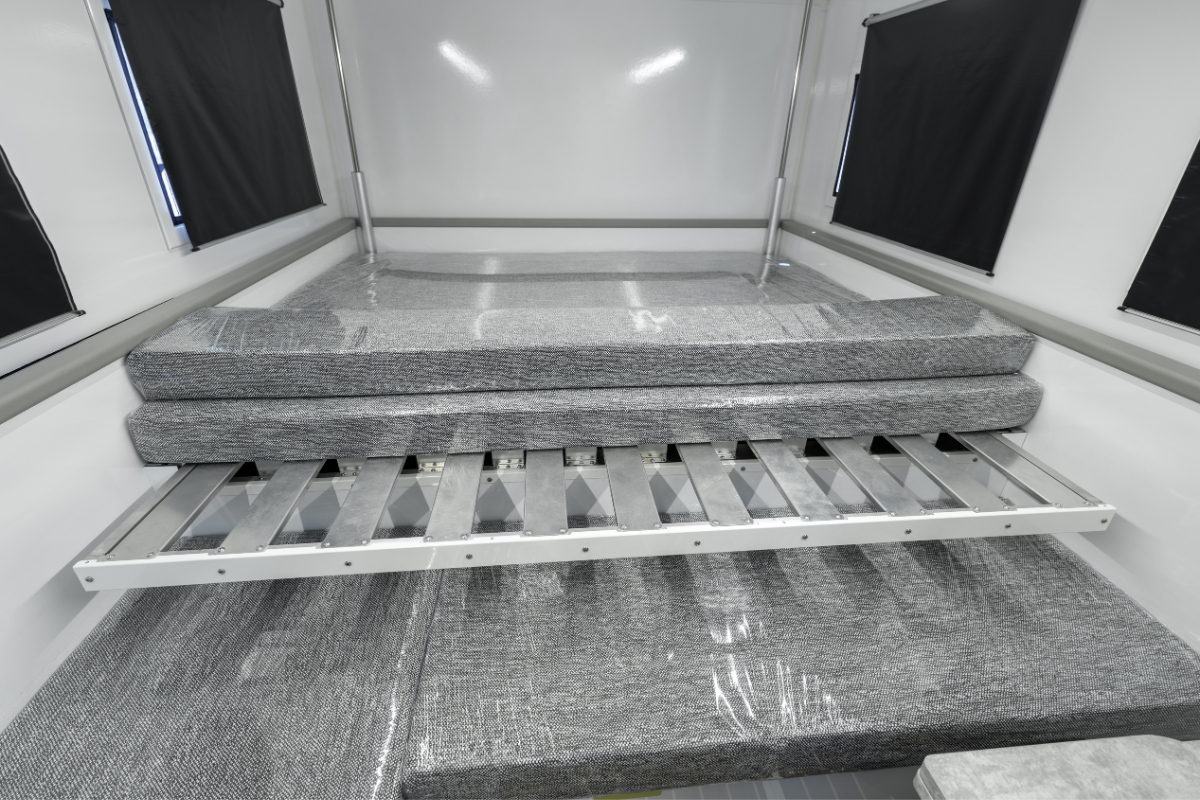

Main Bed: 63" x 78" - 74" x 78"

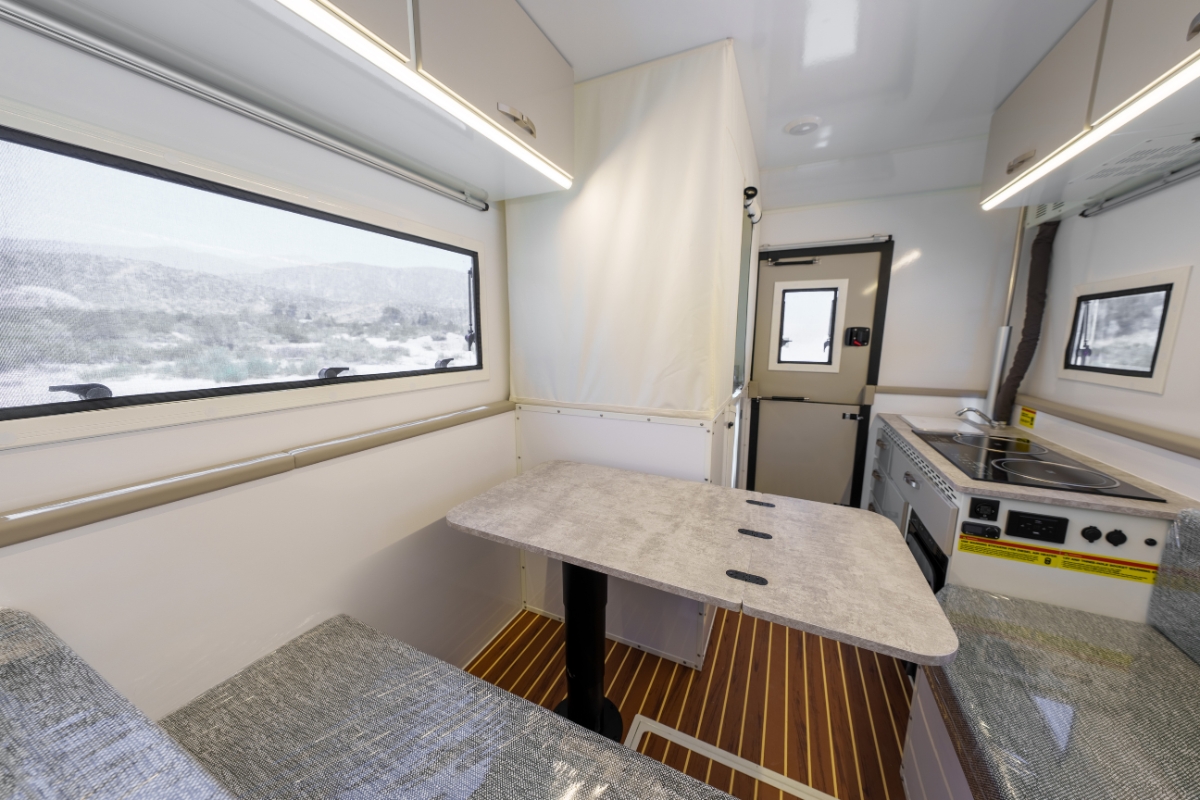

Dinette: Expandable Gas Lift Table

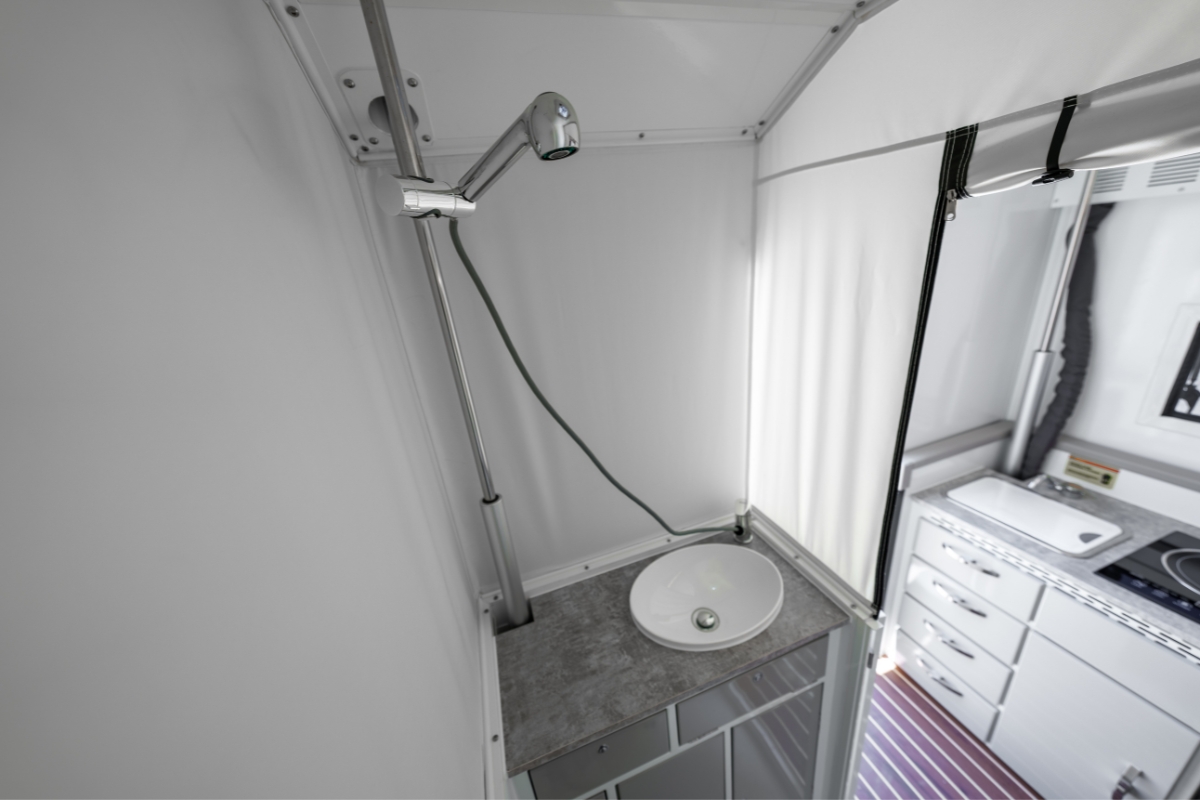

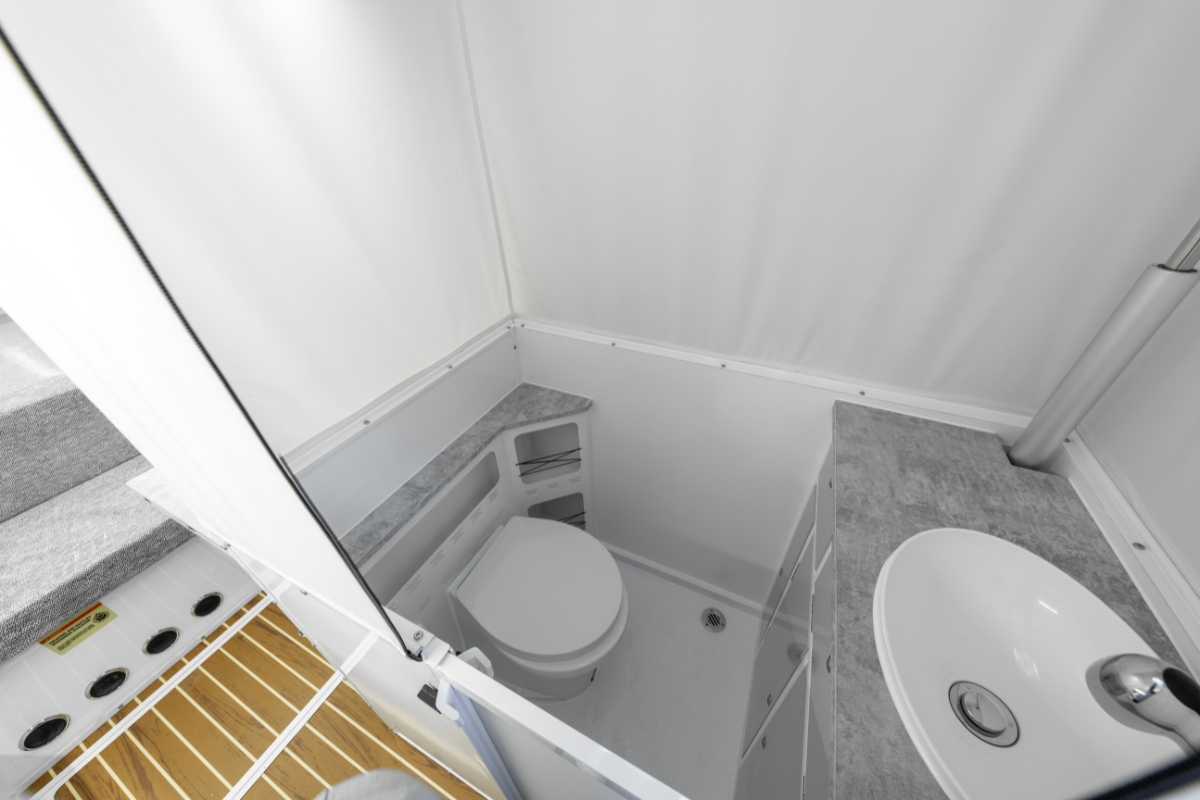

Bathroom: Indoor Bathroom With Macerating Toilet

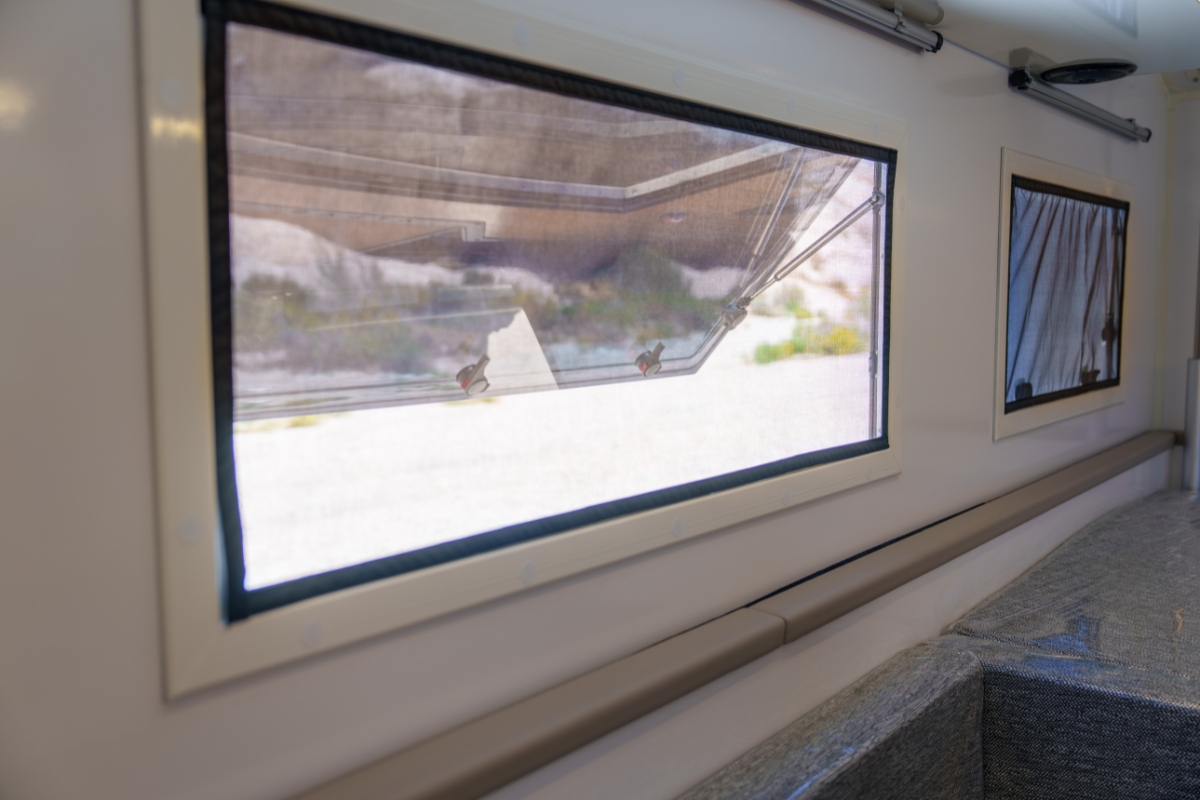

Furniture: Lightweight Waterproof Flooring, All-Aluminium Furniture, RV-Specific Windows And Doors
Interior Lighting: Interior Lights & Ambient Lighting
Sound System: 4 Speakers

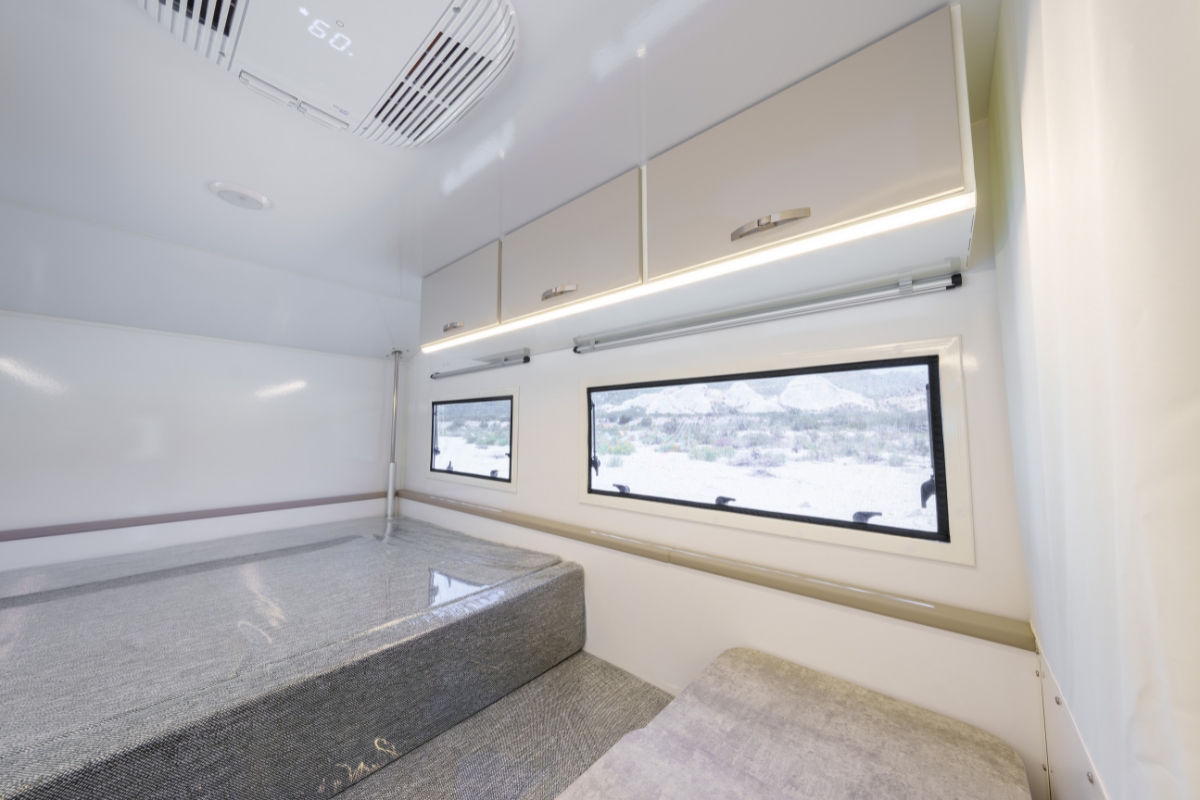

Air Conditioning: Roof A/C
Heating & Hot Water: Diesel Water & Air Heater Combo
Water System: Water Inlet, Campsite Connection, Pressure Accumulator Pump, Fresh Water Inlet
Water Tanks: 265L Fresh Water Tank + 70L Grey Water Tank + 70L Black Water Tank
Washing Machine: 3kg Wall-mounted Washing Machine
Stabilizing System: 4x Manual Stabilizer Legs

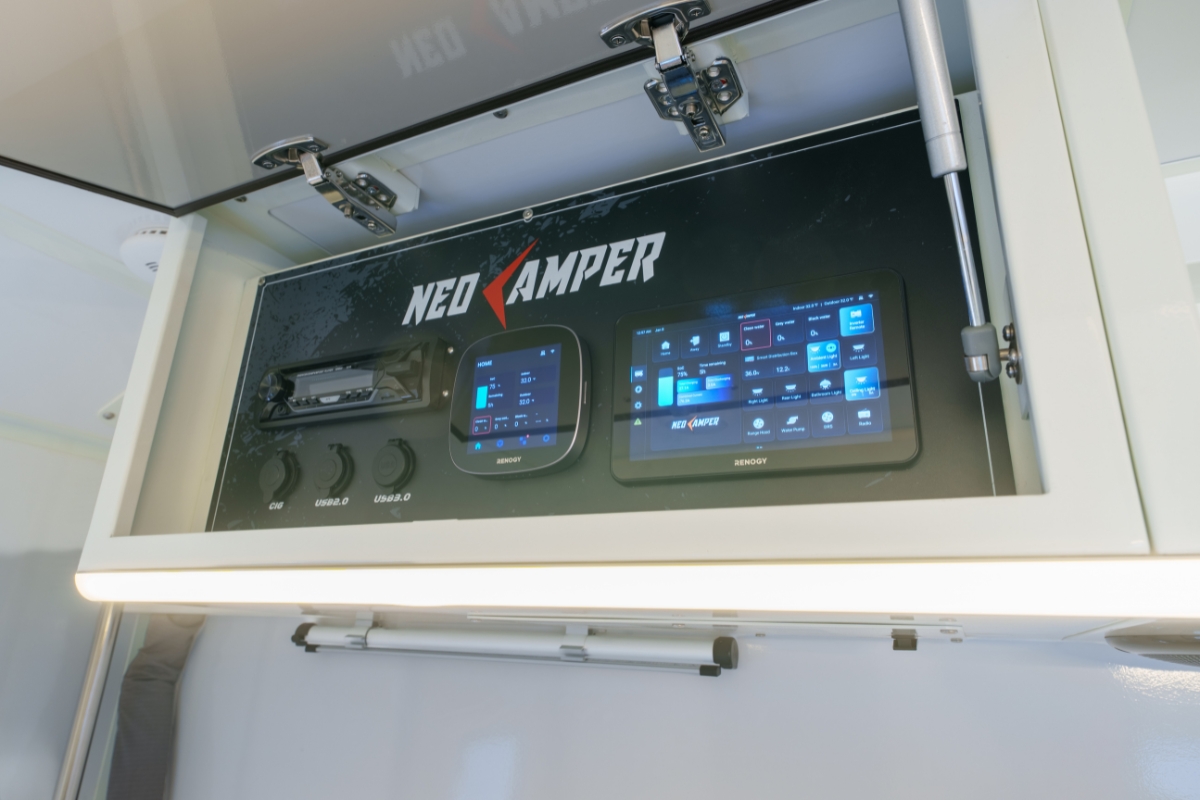

Electrical System: RENOGY-G1 Control Interface, RENOGY Multi-mode Inverter, RENOGY HPPT, RENOGY 3000W Inverter Charger, 1000W Rigid Solar Panel

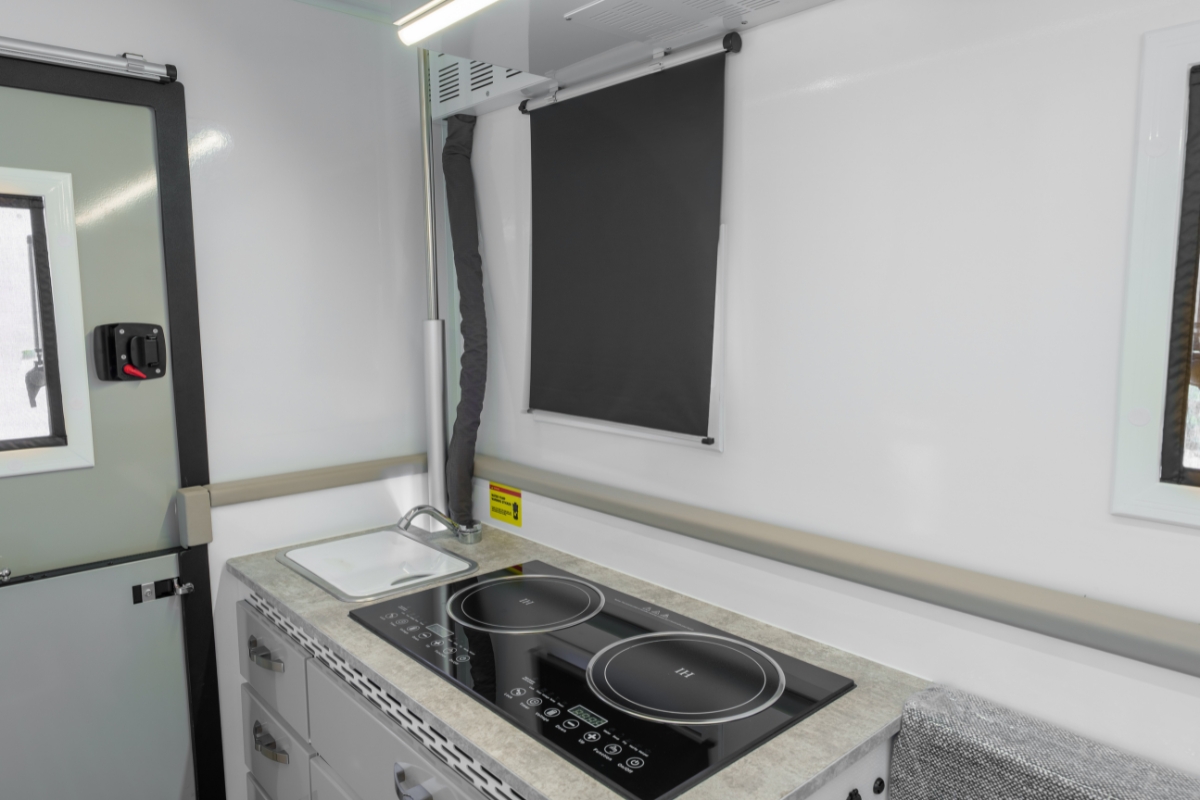

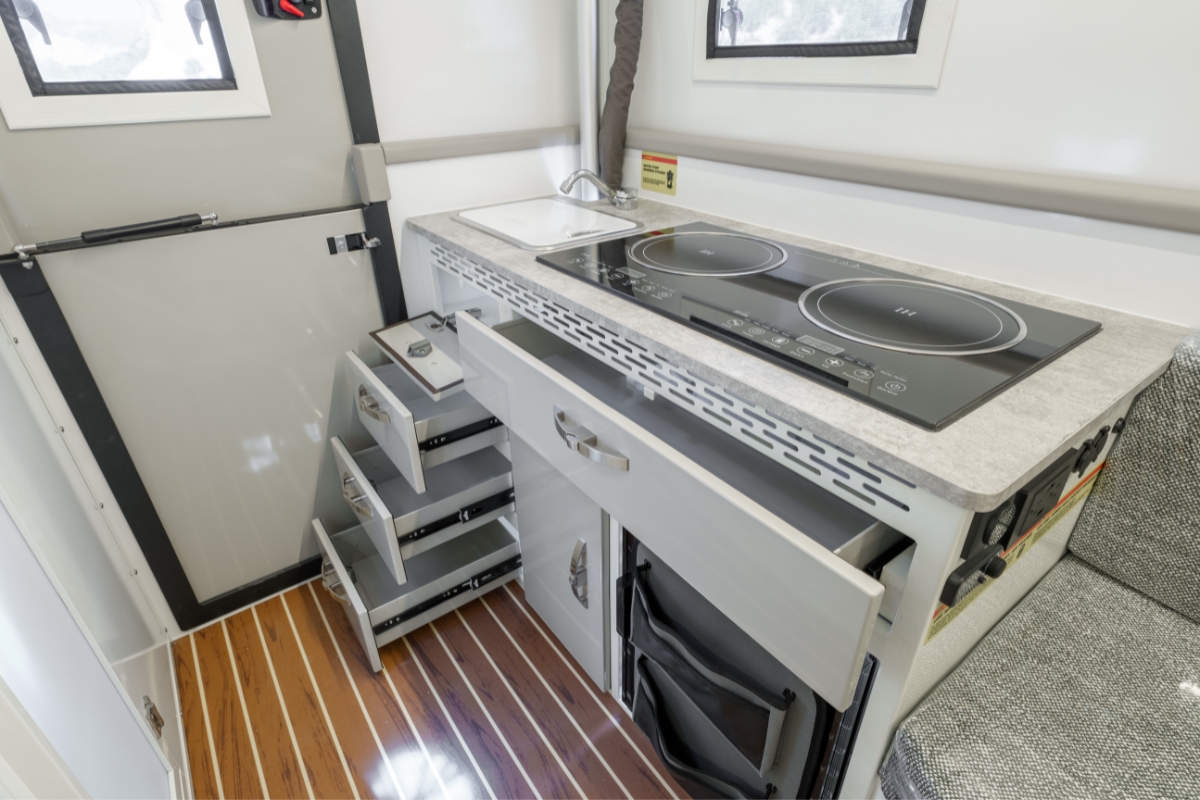

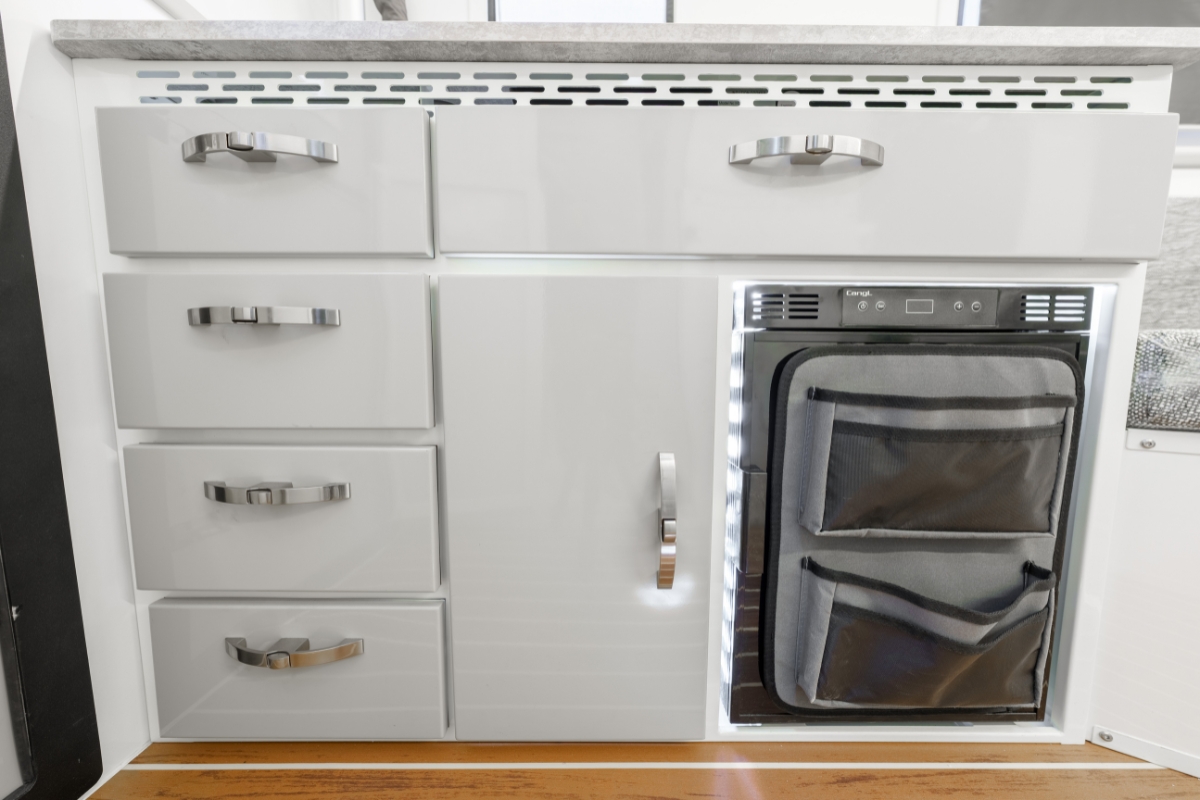

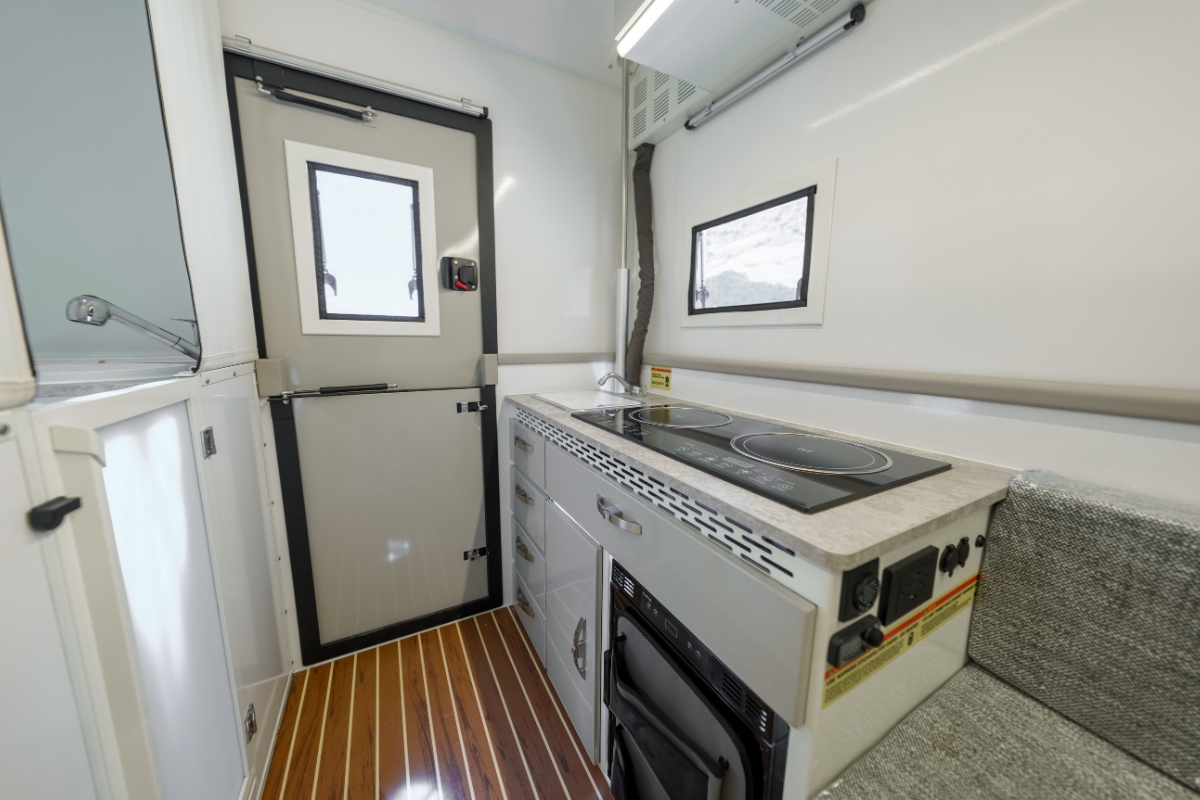

Kitchen: Indoor Kitchen With Dual-Burner Induction Cooktop

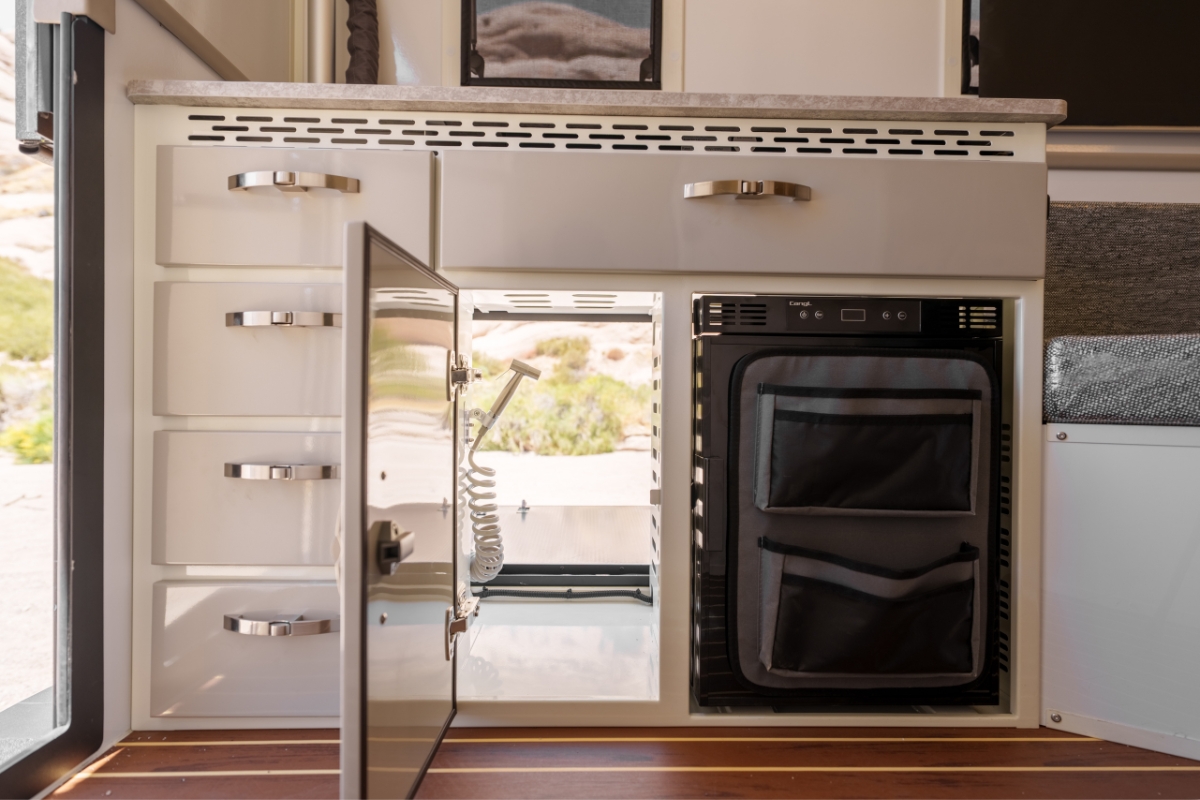

Fridge: Indoor 50L Fridge / Outdoor 78L Portable Dual-Compartment Fridge
Note: No optional extras listed in this configuration sheet.
